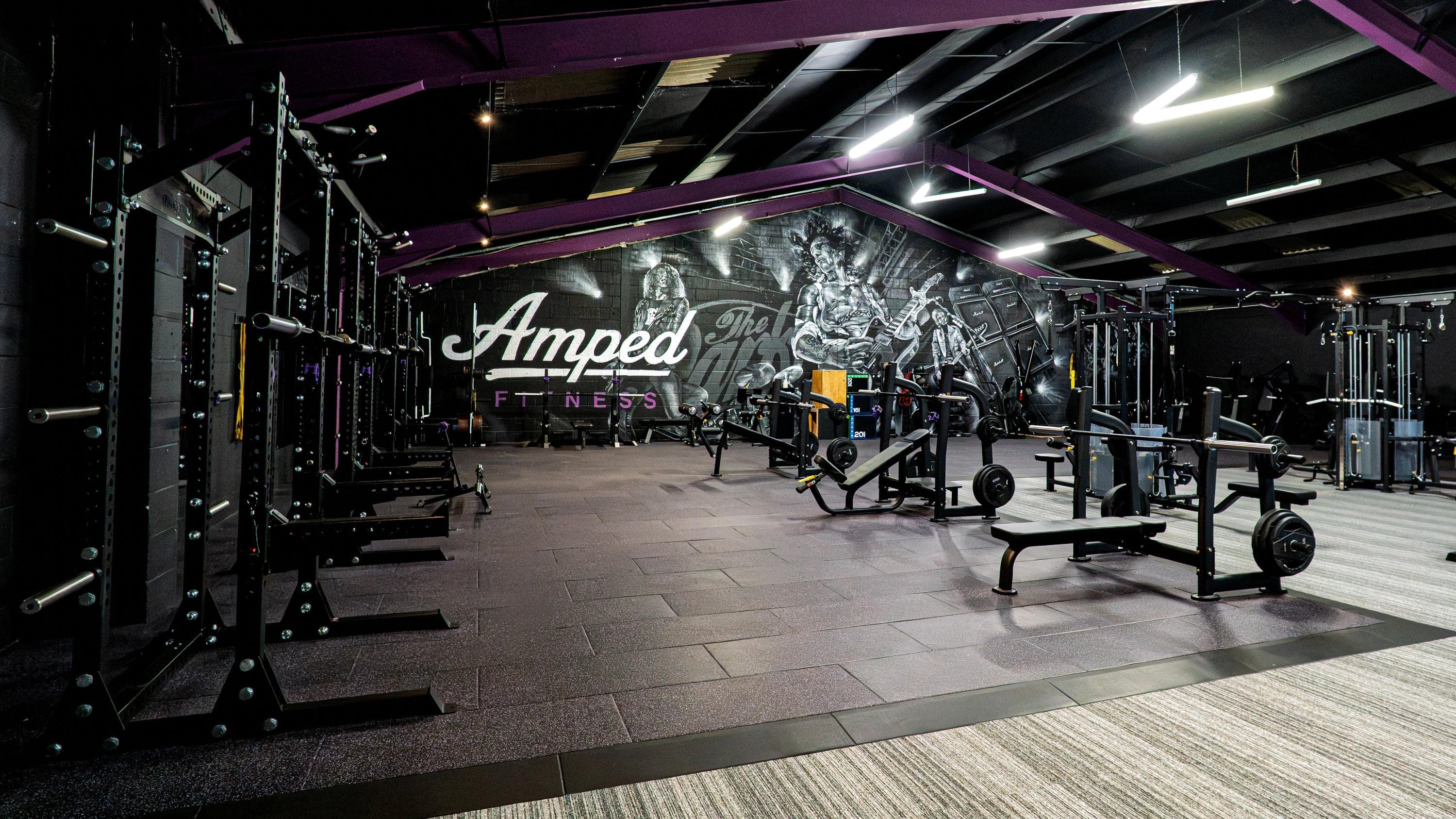

A rack does not occupy only the rectangle shown on an equipment plan. In use, it also requires space for the lifter, the spotter, plate handling, approach and controlled movement away from the station. In a busy commercial gym, those positions determine practical rack capacity more accurately than the frame footprint alone.
The rack footprint is only the fixed element
The physical footprint identifies where the uprights, base sections and attachment points sit. It does not show where people must stand when the rack is being used. A layout can therefore appear orderly on paper while leaving insufficient room for the operating positions that make the station usable.
This distinction matters because the human space around a rack changes throughout a set. The lifter may need to approach the bar, establish position, move clear of the supports and return under control. A spotter needs a stable stance and a direct working position rather than whatever space happens to remain behind the frame. Other users may also be loading plates, waiting to access storage or moving away after a completed set.
Within broader commercial equipment planning, the rack should therefore be assessed as a fixed structure surrounded by a changing operational envelope. The frame defines where the station begins, but activity determines how far its usable boundary extends.
Spotting positions create a separate space requirement
A spotter cannot work effectively from an obstructed or compressed position. They need enough room to stand securely, follow the lifter's movement and adjust their position without stepping into another station. That requirement is separate from the clearance needed to install or service the rack.
The position also changes according to how the rack is being used. Some lifts place the primary spotter behind the lifter. Others may require support at the sides, particularly where more than one person is involved in controlling the bar. The layout does not need to prescribe every lifting method, but it must recognise that spotting is active movement rather than a fixed point on a floor plan.
When this space is missing, the spotter tends to stand too close to uprights, plate storage or adjacent users. The problem is not simply discomfort. A restricted stance can make it harder to follow movement, respond to a change in direction or step away once the bar is secure. In repeated commercial use, a marginal position becomes a recurring operational weakness.
Loading access expands the working boundary
Racks are also loaded and unloaded repeatedly throughout the day. Plates must be carried to the sleeves, aligned, fitted, removed and returned. Each action requires more than hand clearance. The user needs room to stand beside the bar, turn with the load and move away without colliding with the rack structure or another person.
Plate handling is particularly important because it often occurs while another user remains close to the station. One person may be preparing the bar while another adjusts the rack or waits to begin. If the plan allows only for the equipment frame, these overlapping actions spill into the space assigned to neighbouring stations.
The location of plate storage affects this movement, but the key issue is the handling path immediately around the rack. Plates stored nearby can reduce travel, yet poor access can still force users to twist around uprights, reach across the station or place plates temporarily on the floor. Those workarounds increase obstruction and make the effective footprint less predictable.
Approach, escape and repositioning must remain clear
A rack needs a clear approach so the lifter can enter the station without passing through another user's working position. It also needs enough room for controlled repositioning before and after the lift. These movements are brief, but they happen during almost every use and become significant when several racks are occupied at once.
Escape space should not be treated as unused surplus. It is the area that allows the lifter and spotter to move clear when a set ends awkwardly, when the bar is re-racked unevenly or when another person needs to intervene. The exact movement will vary, which is why the space cannot be reduced to a single standing point behind the rack.
The wider rack spacing decisions framework explains how commercial layouts balance capacity with safe access. At individual rack level, the specific requirement is to preserve the operating positions that allow users to approach, lift, spot, load and leave without relying on neighbouring space.
Frame-only planning creates false capacity
When rack capacity is calculated from frame dimensions alone, the plan may show more stations than the room can support in practice. The racks fit, but the people using them do not. During quieter periods this can remain hidden because users naturally spread out. Under sustained demand, the missing space becomes visible through interference between stations.
Typical failure points include spotters standing inside adjacent working areas, users carrying plates across occupied positions and lifters waiting for enough room to enter or leave a rack. Staff may then need to manage behaviour that was created by the layout rather than by deliberate misuse.
This is false capacity. The facility technically contains the planned number of racks, yet not all of them can be used fully at the same time. Operational capacity falls below installed capacity because one station depends on borrowed space from another.
Repeated use makes small conflicts permanent
Commercial gym layouts must work across repeated cycles of loading, lifting, spotting and resetting. A small conflict that occurs once during a quiet assessment may happen hundreds of times over the life of the installation. Repetition changes the importance of the issue.
Users respond to restricted space by adapting. They may leave plates closer to the rack, wait in the nearest open area, move spotters to less suitable positions or shift loose equipment away from the station. These adjustments can make the layout increasingly untidy and less predictable, even when the original equipment positions remain unchanged.
There are also long-term performance consequences. Repeated contact with uprights, plates placed against frames and congested handling around storage points can increase local wear. The rack itself may remain structurally sound, but the operating environment around it becomes harder to manage and less consistent.
Practical rack capacity must be tested in use
The correct planning question is not how many rack frames fit within the available area. It is how many racks can operate at the same time while preserving the positions required for lifters, spotters and plate handling.
That assessment should consider realistic occupancy rather than an empty-room condition. The rack should be viewed while loaded, while a spotter is in position and while another user is approaching or returning plates. This reveals whether the station is self-contained or dependent on space outside its intended boundary.
Where the operating envelope overlaps another rack, the response should not be to assume users will coordinate perfectly. Busy commercial gyms contain different training speeds, different levels of awareness and frequent changes in load. The layout must absorb that variation without making every successful interaction dependent on informal negotiation.
Separate the operating envelope from the frame
Rack footprints remain necessary for installation planning, but they are not a complete measure of space demand. Spotting, loading, approach and repositioning create a second boundary that must be considered separately.
Planning that boundary protects practical capacity. It allows each rack to function as an independent station rather than borrowing space from the one beside it. Over time, this supports clearer access, more consistent use and fewer operational compromises around one of the most heavily worked areas of a commercial gym.
